Toughener series-nylon class

Nylon toughener (GT-RP, GT-RP157)

Product Description

This series of products is a special toughener developed for nylon (PA) products by Xingete Company. This series of tougheners is maleic anhydride grafted ethylene-octene copolymer (POE-g-MAH), which can greatly improve the impact strength of nylon, reduce water absorption, and improve the dimensional stability of products, especially for improving the low-temperature impact resistance of nylon plays a prominent role and is widely used in ordinary toughening and super toughening of nylon products.

Typical Use
  • Glass fiber reinforced toughened PA
  • Toughened the filling PA
  • reinforced toughened the flame retardant PA
  • Super tough PA and other products
Product Features
  • Good low-temperature resistance
  • good processing performance
Instructions
  • Granulate after uniform mixing with nylon resin, the recommend add amount is 3% to 20%。
Packaging and Storage

  • Use kraft paper bag lined with plastic bag for packaging. The net weight of each bag is 25Kg. It can be stored and transported under dry conditions as non-dangerous goods. Avoid sunlight and water.

Properties

Trademark

Melt Index(g/10min)

Appearance

Grafting Level

Density(g/cm3)

RP

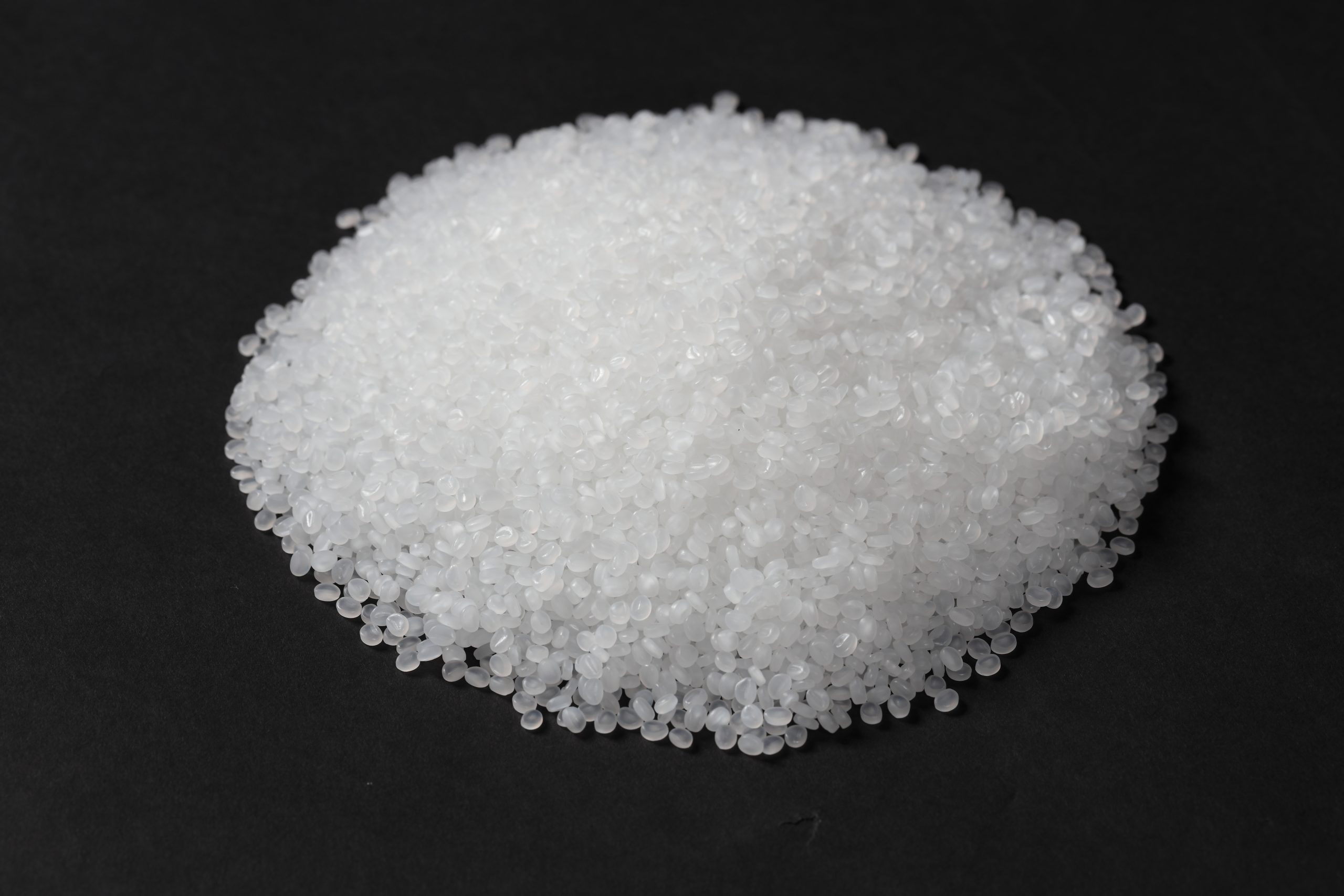

1.2Colorless or white translucent particlesMedium0.86-0.89
RP1570.4Colorless or white translucent particlesHigh

0.86-0.88



Effects of GT-RP and GT-RP157 on the properties of toughened PA6

Properties

Measurement

PA6

PA6+10%(GT-RP）

PA6+10%(GT-RP157)

Tensile Strength

MPa

67

62

58

Bending strength

MPa

80

68

53

Izod impact strength

KJ/m2

6.2

30

48



Effects of GT-RP on the properties of reinforced and toughened PA6 (with 30% GF）

Properties

Measurement

PA6+30%GF

PA6+30%GF+3（GT-RP）

PA6+30%GF+5%(GT-RP）

Tensile Strength

MPa

171

167

160

Bending strength

MPa

200

196

190

Izod impact strength

KJ/m2

15

20

24

Note: The above data are typical laboratory results, true and reliable, for reference only, and do not make a formal quality commitment.
